• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1946–1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79055

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK32 DF33 DAC32 DL35

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 90+1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.15 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: BP90 - Bush Radio; London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 9 x 8.5 inch / 305 x 229 x 216 mm

• Notes

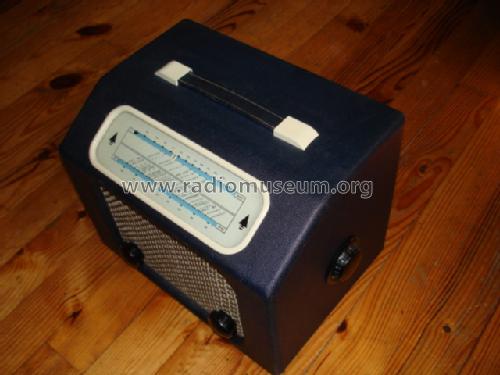

• Blue leathercloth covered wooden case. Early models were in black leathercloth, later models were also available in blue.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 15.00 GBP

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
