• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79015

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CCH35 EF39 EBC33 CL33 CY31

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: DAC90 [cream] - Bush Radio; London

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.675 x 9.125 x 7.875 inch / 322 x 232 x 200 mm

• Notes

• also in black or brown color.

• Net weight (2.2 lb = 1 kg)
• 10 lb (10 lb 0 oz) / 4.540 kg

• Literature/Schematics (1)

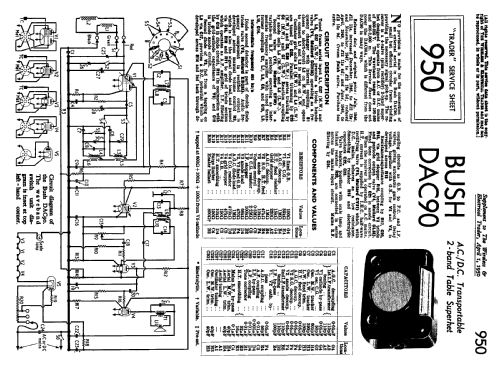

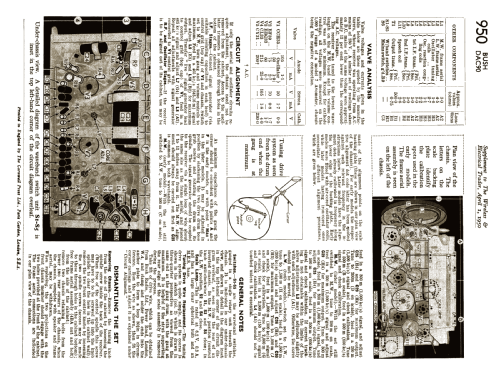

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (950)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
