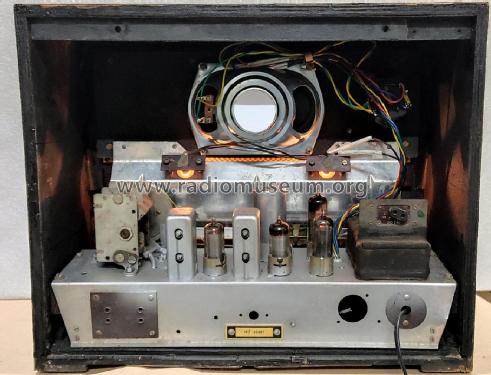

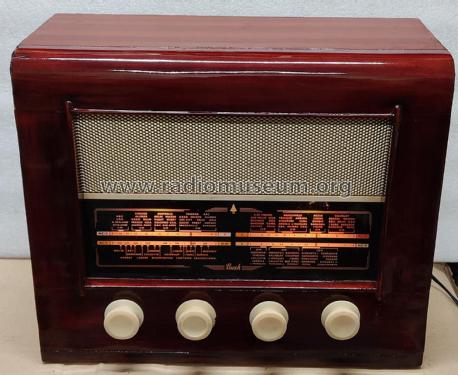

EBS41
Bush Radio; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio; London
- Year
- 1952/1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 327255
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 451 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-120; 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: EBS41 - Bush Radio; London
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 14 x 11 x 8 inch / 356 x 279 x 203 mm
- Notes
-

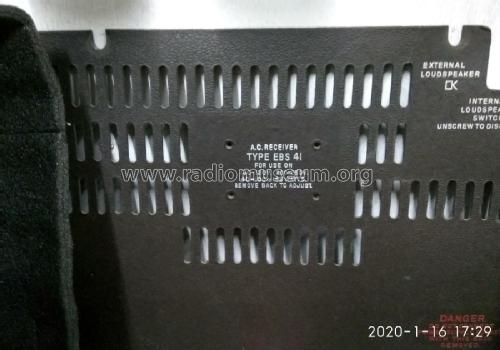

An AC mains table radio with MW and 3 x SW bands. With sockets for antenna, earth, gramophone pickup and external loudspeaker and switch to disconnect internal loudspeaker. Export model.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Author
- Model page created by Uday Kalburgi. See "Data change" for further contributors.
