SRG86
Bush Radio Ltd.; london
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio Ltd.; london
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103238
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz

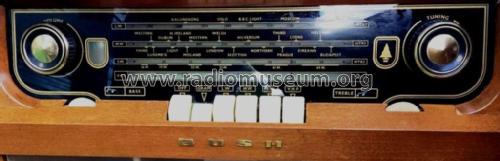

- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)

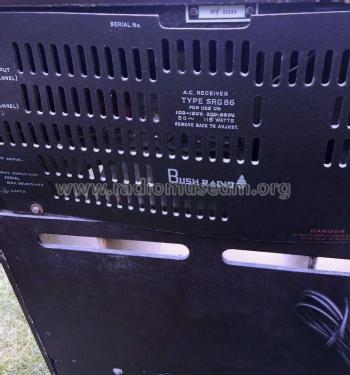

- Power type and voltage
- Alternating Current supply (AC) / 110-120; 200-250 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: SRG86 - Bush Radio Ltd.; london
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 995 x 960 x 420 mm / 39.2 x 37.8 x 16.5 inch
- Notes

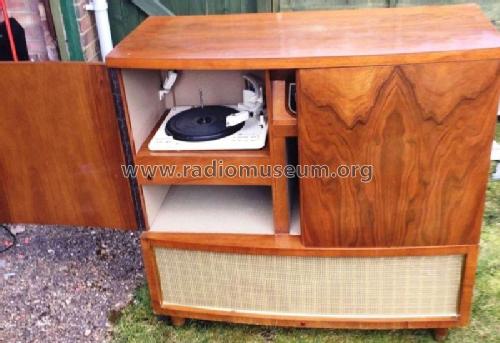

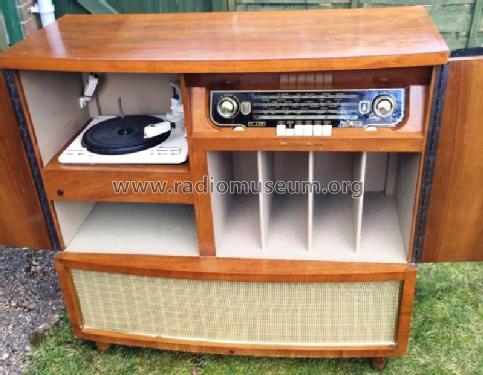

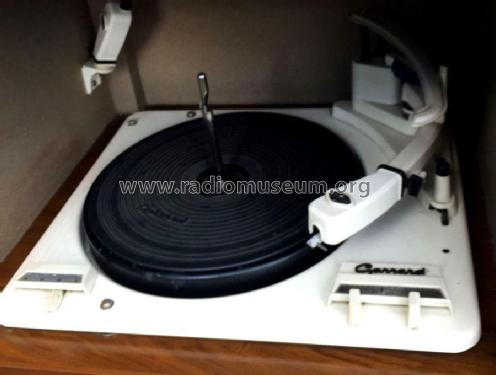

- Stereo radiogram fitted with Garrard RC121 Mk2 four speed changer. Speakers per channel: 10 inch plus tweeter. Audio output power 6W total.
- Net weight (2.2 lb = 1 kg)
- 45.5 kg / 100 lb 3.5 oz (100.22 lb)
- Price in first year of sale
- 83.00 GBP
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- ERT Sheet 1256.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
