• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio Ltd.; london

• Year
• 1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 122557

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECL83 ECL83

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 200-225; 225-250 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: SRP31 - Bush Radio Ltd.; london

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.5 x 17.5 x 9.5 inch / 394 x 445 x 241 mm

• Notes

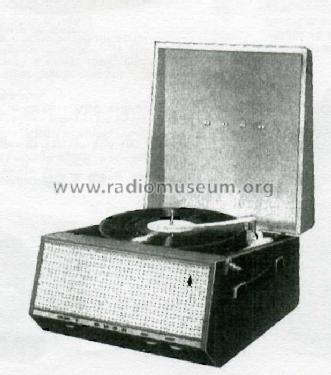

• Bush model SRP31 is a two-valve auto-change record player with push-pull output stage for mono reproduction.
  Bush model AU31 provides a similar amplifier intended primarily for use as second unit for stereo reproduction.

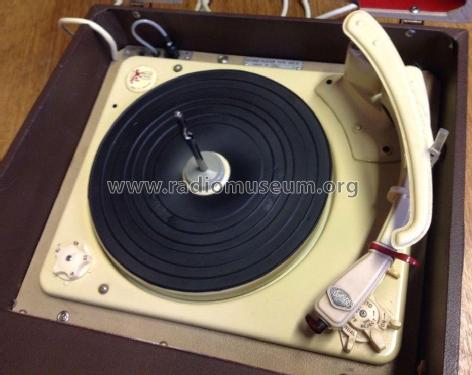

  Record unit: Garrard RC121 Mk II with GC8 pick-up.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
