• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio Ltd.; london

• Year
• 1961

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 159247

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 EF86 ECL86 EM84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: TP50 - Bush Radio Ltd.; london

• Shape
• Tablemodel, with any shape - general.

• Notes

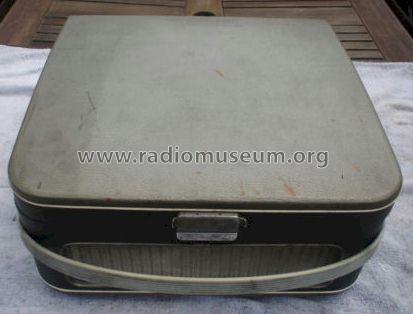

• Tape recorder, using BSR type TD2 deck. 4 track, single speed 3.75 ips, spool size 5.75 inch.

• Price in first year of sale
• 40.00 GBP

• Source of data
• -- Schematic

• Literature/Schematics (1)

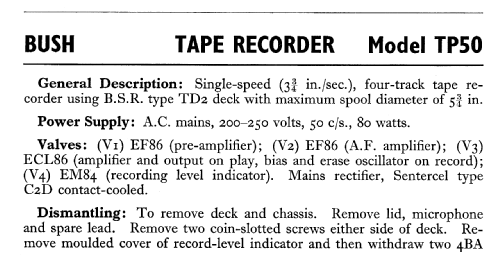

• Radio And Television Servicing books (R&TVS) (Trader Sheet 1575)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.

• Other Models

• Here you find 400 models, 333 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
