• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103242

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF117 AF117 AF117 OC71 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TR102 - Bush Radio; London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13.25 x 10 x 2.75 inch / 337 x 254 x 70 mm

• Notes

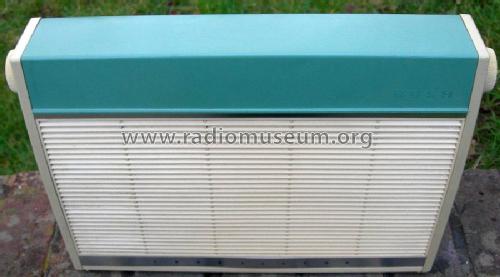

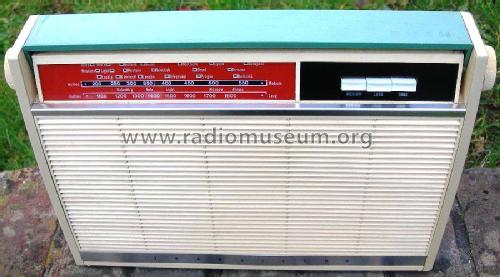

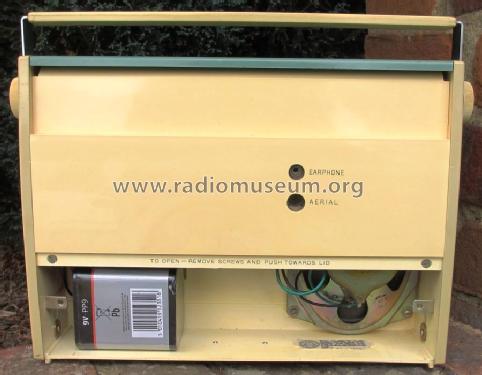

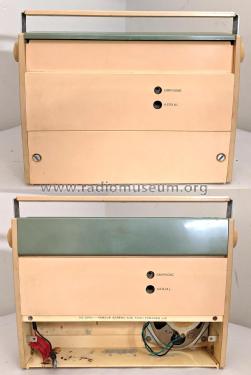

• Sockets for earphone and car aerial. Switches on by opening the hinged cover on top. Pressing the tuning knob illuminates the dial. Released January 1962 price £16 13s 3d plus purchase tax.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader sheet 1561

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
