Long Player TR104

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89891

• Picture

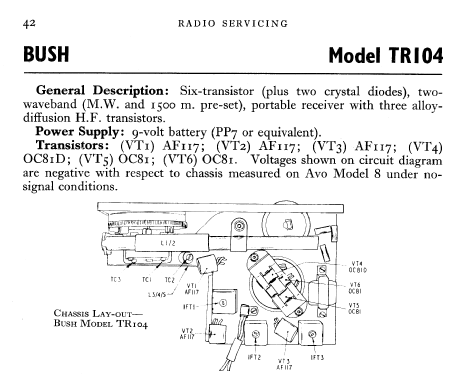

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

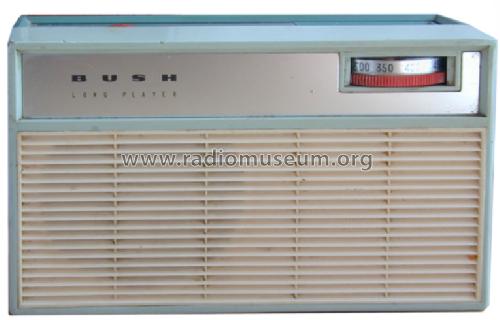

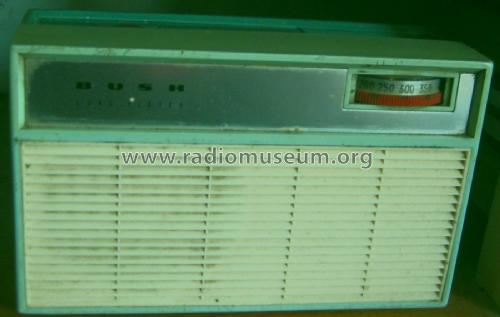

• Model: Long Player TR104 - Bush Radio; London

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.75 x 3.5 x 2 inch / 146 x 89 x 51 mm

• Notes

• The Bush radio TR104 was released July 1961, price £11 2s 0d plus purchase tax. Guest Ronald Camp wrote to us: "The "Long Player" logo was added after this radio came top in a "Which" test of radios in respect of battery life by a long head, no doubt because the battery was much larger than the PP3 used by the competition. When the TR104 was bought before the "Which" report, it did not have the "long player" logo." The TR104 is the smallest Bush radio made in the 1960s.

  The battery was a PP7 or equivalent.

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Price in first year of sale
• 11.00 GBP

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
