• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1963–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89871

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF117 AF117 AF117 OC71 OC81D OC81 OC81 OA90

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / PP9: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.33 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TR82D - Bush Radio; London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13.5 x 10.75 x 3.75 inch / 343 x 273 x 95 mm

• Notes

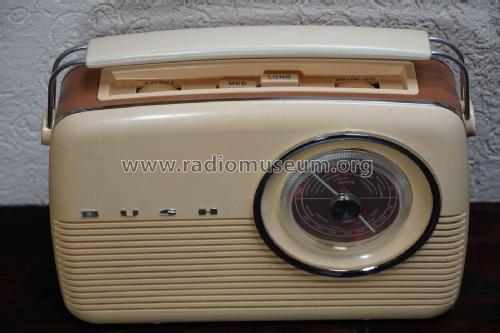

• A 2 band battery portable transistor radio housed in a cream and light tan plastic case with chrome trim. Sockets for a car aerial and earphone. Same as the Bush TR82C Mark II model which has a blue case.

• Net weight (2.2 lb = 1 kg)
• 7 lb 4 oz (7.25 lb) / 3.292 kg

• Mentioned in
• Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.105, January-February 2012, page 18)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• - - Manufacturers Literature (Bush Service Manual TR82C & TR82D (Mark II))

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
