• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio Ltd.; london

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 161566

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV24C - Bush Radio Ltd.; london

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

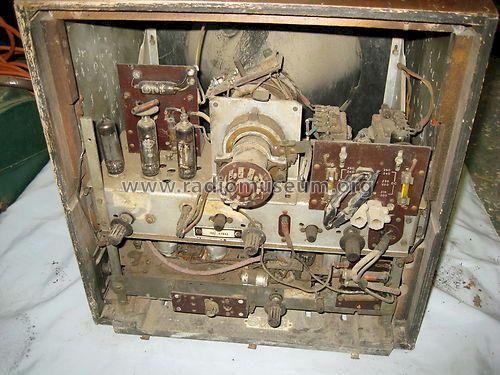

• Table TV set with a 12 inch 405 line b/w CRT with a 13 channel GB VHF Band I/III tuner. The main chassis is the same as the Bush TV24 model and the RF unit is the same as the Bush TV43.

• Literature/Schematics (1)

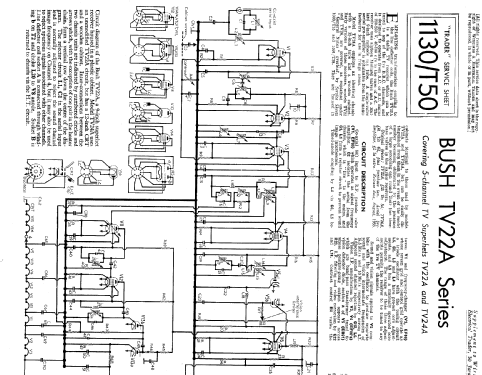

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1130/T50)

• Literature/Schematics (2)

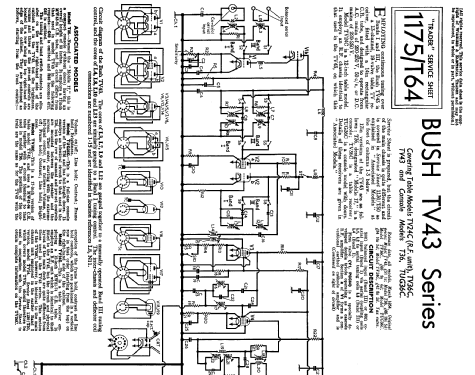

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1175/T64)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
