- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio Ltd.; london
- Year
- 1955
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 200537
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- PCC84 PCF80 EF80 EF80 EF80 EB91 PCF80 ECC83 ECC82 PL81 EY51 or EY86 PY81 EF80 EF80 EB91 PCL83 PCL83 PY82 PY82 MW43-64
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material

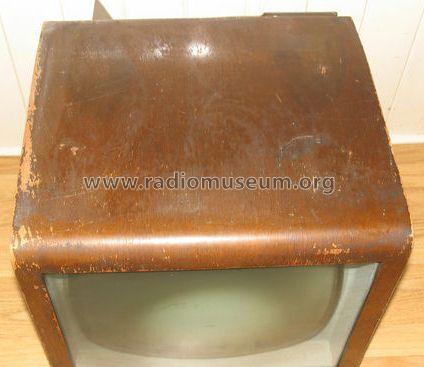

- Wooden case
- from Radiomuseum.org

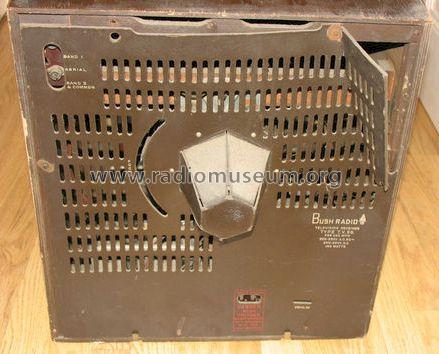

- Model: TV56 - Bush Radio Ltd.; london
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes

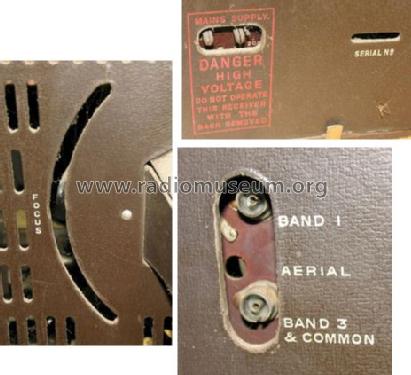

- Console TV receiver with 405 line 17 inch b/w CRT. 13 channel GB band 1 and 3 VHF tuner.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1236/T97)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
