- Country
- Australia
- Manufacturer / Brand
- Bush Simpson Ltd.; Adelaide and Kilkenny, SA
- Year
- 1957/1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 291695
Mingay's Price Service, 11/57 to 11/58.
- Number of Tubes
- 18
- Valves / Tubes
- 6CW7 6BL8 6BX6 6BX6 6BX6 6BL8 6BX6 6BX6 6BM8 12AX7 6BM8 12AU7 6CM5 1S2 6R3 6N3 6N3 AW53-88
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 205-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21B - Bush Simpson Ltd.; Adelaide
- Shape
- Console with any shape - in general
- Notes
-

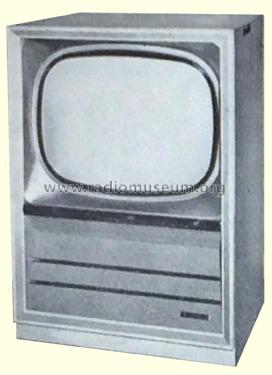

Bush-Simpson 21B
Both Bush-Simpson 21" full-view, unmasked screen models have top-tuning panels with all controls recessed beneath hinged flap. two-unit chassis construction, out-front sound. The Horizontal and Vertical Consoles have the same receiver with dual controls for channel selection/tuning and volume-brightness and width, height, frame-hold contrast. Available in Maple, Walnut or Rosewood. (MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 255.15 AUS £
- Mentioned in
- Mingay's Price Service (Nov 1957 to Nov 1958.)
- Literature/Schematics (1)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962, Page B1.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
