Cadillac Div.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Cadillac Div.
- Year
- 1955 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 172691

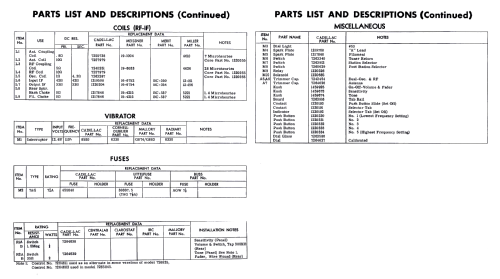

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 262 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: 7265845 - Cadillac Div.
- Shape
- Chassis only or for «building in»
- Notes
-
Cadillac model 7265825 is a battery operated custom built AM superheterodyne automobile receiver. Push-pull af output stage; vibrator for +B. Push-pull af output stage; vibrator for +B.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 15, 1955
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 302 Folder 2 dated 1-56)
