Lodestar Mark1 1011
CAE (Canadian Aviation Electronics) ; Montreal, QC
- Country
- Canada
- Manufacturer / Brand
- CAE (Canadian Aviation Electronics) ; Montreal, QC
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 325896

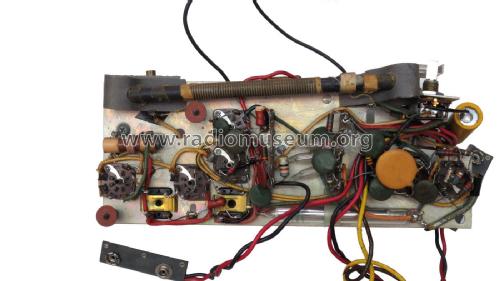

Radio from my own collection.
Radio from my own collection.
Radio from my own collection.
Radio from my own collection.
Radio from my own collection.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Radio with other functions
- Power type and voltage
- Dry Batteries / 2 x 1.5 & 2 x 67.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Lodestar Mark1 1011 - CAE Canadian Aviation
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.25 x 5.75 x 4 inch / 260 x 146 x 102 mm
- Notes
-
Emergency receiver with geiger counter. The geiger counter circuit uses two 1U5 tubes and a Victoreen Type 1886 Geiger-Muller tube. Although manufactured in Canada the CONELRAD marks on the radio dial suggest that it was also intended for the US market.
- Net weight (2.2 lb = 1 kg)
- 3 lb 8 oz (3.5 lb) / 1.589 kg
- Author
- Model page created by Jean Marcotte. See "Data change" for further contributors.
