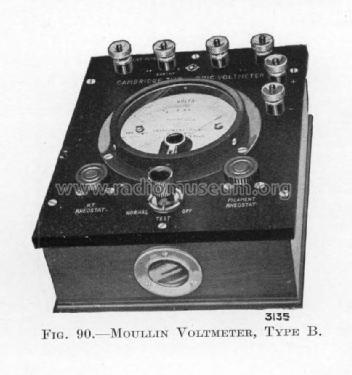

Cambridge Thermionic Voltmeter Type B

Cambridge Scientific Instrument Co.; Cambridge

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1928 ?
  • Categoría
  • Aparato de medida y servicio (Equipo de laboratorio).
  • Radiomuseum.org ID
  • 357590

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de valvulas
  • 1
  • Válvulas
  • Gama de ondas
  • - no hay
  • Tensión de funcionamiento
  • Pilas / 70 4 Volt
  • Altavoz
  • - - No hay salida de sonido.
  • Material
  • Materiales diversos
  • de Radiomuseum.org
  • Modelo: Cambridge Thermionic Voltmeter Type B - Cambridge Scientific
  • Forma
  • Sobremesa de cualquier forma, detalles no conocidos.
  • Anotaciones

  • Cambridge Thermionic Voltmeter, Model B, was developed to complement the Model A.

     It addressed the limitations of Model A to meet a broader set of measurement needs. The key differences between the Type A and Type B Cambridge Thermionic Voltmeters (Moullin Voltmeters) are:
    1. Voltage Range:

    • Type A: 0 to 5 volts
    • Type B: 0 to 10 volts

    2. Circuit Design:

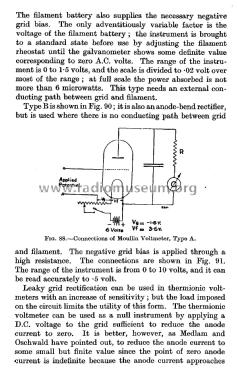

    • Type A: Does not use an anode battery. The filament battery supplies both the filament current and the negative grid bias.

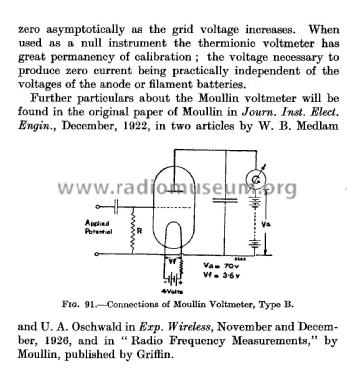

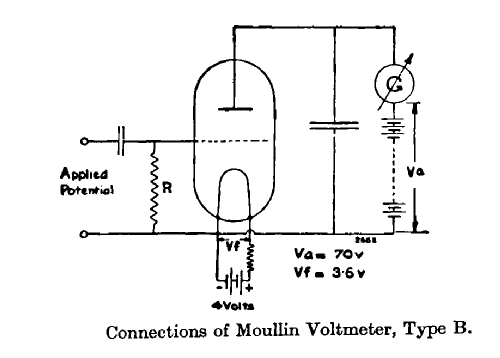

    • Type B: Uses a separate anode battery and applies negative grid bias through a high resistance.

    3. Input Impedance:

    • Type A: Requires an external conducting path between grid and filament.
    • Type B: Can be used where there is no conducting path between grid and filament.

    4. Precision:

    • Type A: Scale is divided to 0.02 volt over most of the range.
    • Type B: Can be read accurately to 0.5 volt.

    6. Application:

    • Type A: Suitable for very low voltage measurements with high sensitivity.
    • Type B: More suitable for higher voltage measurements and in circuits without a direct grid-filament path.

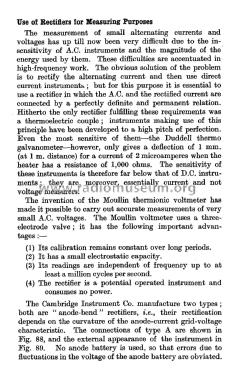

    Both types use anode-bend rectification, relying on the curvature of the anode-current grid-voltage characteristic for their operation. The Type B model appears to be more versatile in terms of circuit compatibility and voltage range, while the Type A offers higher precision for very low voltage measurements.

  • Mencionado en
  • Elektrische Gleichrichter und Ventile, Prof. Dr.-Ing. A.Güntherschulze of the Physikalisch-Technisch
  • Autor
  • Modelo creado por Wolfgang Müllner. Ver en "Modificar Ficha" los participantes posteriores.
