• Country
• United States of America (USA)

• Manufacturer / Brand
• Cameradio Co.; Pittsburgh, PA

• Year
• 1938

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 264987

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6Q7 6C5 6A7 6D6 6V6G 6V6G 0Z4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 6.5 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Cameo 8A6D - Cameradio Co.; Pittsburgh, PA

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 7.75 x 8.5 x 7 inch / 197 x 216 x 178 mm

• Notes

• The Cameo 8A6D was only available in the 1938 catalog. Speaker was separate unit from radio.

• Net weight (2.2 lb = 1 kg)
• 25.5 lb (25 lb 8 oz) / 11.577 kg

• Price in first year of sale
• 35.95 USD

• Mentioned in

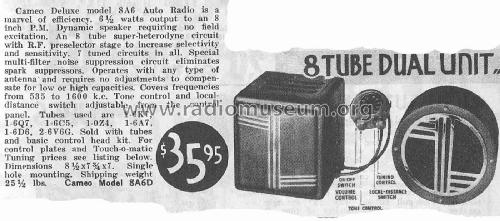

• Cameradio 1938 Catalog page 11.

• Author
• Model page created by Wayne Childress. See "Data change" for further contributors.

• Other Models

• Here you find 23 models, 23 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
