Super Selective 10
Camfield Radio Mfg. Co., Oakland, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Camfield Radio Mfg. Co., Oakland, CA
- Year
- 1927 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232534

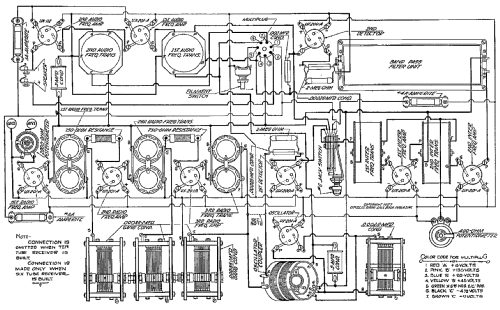

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 95 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: Super Selective 10 - Camfield Radio Mfg. Co.,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Under one form of connection (by means of the jack switch) the set is operated as a 6 tube TRF-receiver with three tuned r.f. stages, detector and two stages of audio amplification, the first r.f. tube not being tuned and serving as a coupling tube to the antenna. When the jack switch is thrown in the 10 position the intermediate frequency stages and a band pass filter are switched into position for operating as a full-fledged ten tube super.
- Author
- Model page created by Geert Schulte. See "Data change" for further contributors.
