- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298730
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 2.5 W (3.9 W max.)
- from Radiomuseum.org
- Model: 100 - Canadian Marconi Co. Ltd. CMC,
- Notes
-

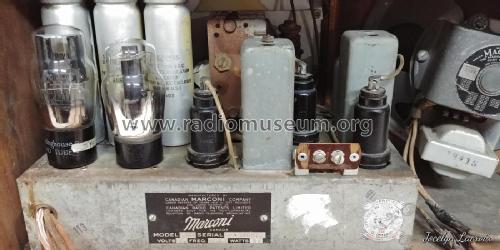

The Canadian Marconi model 100 is a 5-tube radio. Covers standard broadcast and 1.6 to 5.2 MHz and 5.2 to 18 MHz shortwave.
- Literature/Schematics (1)
- Marconi Service Manual (Volume 1) (Page 177-180)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
