- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1952 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 214754
-
- alternative name: CMC Canada || Marconi, Canada

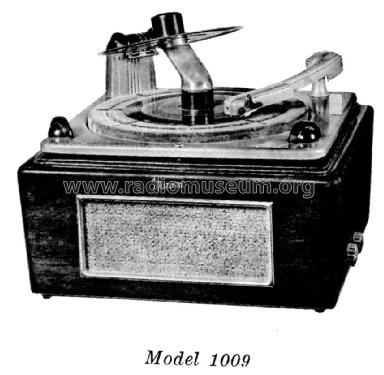

Picture from Marconi Radio Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.75 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1009 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes

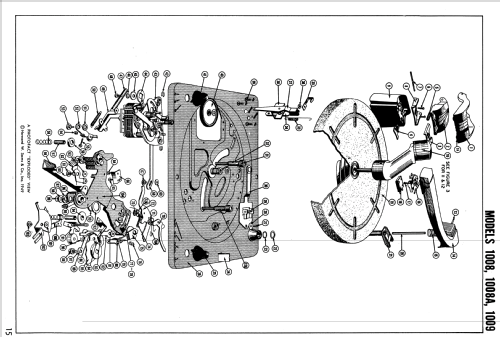

- The Marconi Model 1009 is a portable AC operated record changer with amplifier and speaker. Plays 33-1/3, 45 and 78 RPM records. Uses Qty(1) PM Elliptical 5" x 7" speaker. Record changer is a Milwaukee model 11600 which plays Qty(12) 7" or 10" records or Qty(10) 12" records, not intermixed. Cabinet is Blonde or Walnut. Available for either 25 or 60Hz AC power.
- Source of data
- Marconi Service Manual Volume No. 2
- Literature/Schematics (1)
- Marconi Service Manual Volume No. 2 (Volume 2, Page 9)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
