• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130582

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6A8 6C5 6K7 6G5 6Q7 6L6 5Y4G

• Main principle
• Superhet with RF-stage; ZF/IF 462.5 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 102 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with any shape - in general

• Circuit diagram reference
• Radio College of Canada

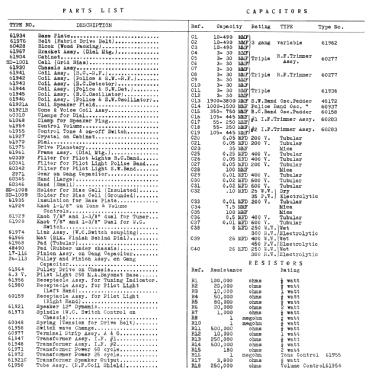

• Literature/Schematics (1)
• Canadian Marconi Service Manual Volume #1

• Author
• Model page created by John Bartley. See "Data change" for further contributors.
