• Year
  • 1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 298786
    • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 3.5 W (6 W max.)
  • from Radiomuseum.org
  • Model: 123 - Canadian Marconi Co. Ltd. CMC,
  • Notes

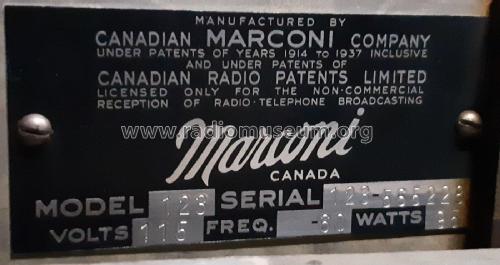

  • The Canadian Marconi model 123 is a 7-tube radio / record player combination. Uses a crystal phono pickup. Covers standard broadcast and 1.6 - 5.2 MHz and 5.2 - 18 MHz shortwave. For 25 or 60 Hz depending on nameplate rating.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
