- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 252500
-
- alternative name: CMC Canada || Marconi, Canada

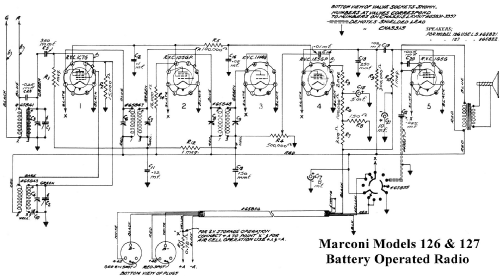

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Main principle
- Superheterodyne (common); ZF/IF 462.5 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 1.5 or 2 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 0.27 W (0.68 W max.)
- from Radiomuseum.org
- Model: 127 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Tablemodel with Push Buttons.
- Notes
-
The Canadian Marconi model 127 is a 5-tube battery powered table radio for broadcast reception. The A battery can be either 1.5 V air cell or 2 V rechargeable.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (sheets 73, 74, 76)
- Literature/Schematics (2)
- Marconi Service Manual (Volume 1) (Page 267-270)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
