• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 290646

• • alternative name: CMC Canada || Marconi, Canada

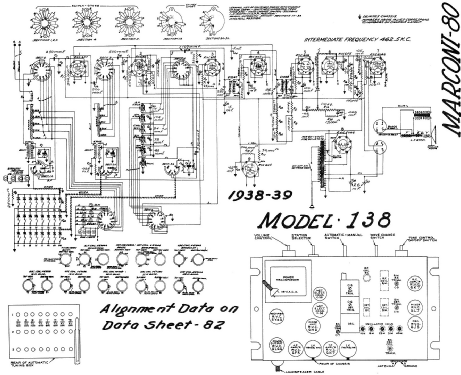

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K7 6L7 6J5 6K7 6U5 6H6 6F5 6L6G 5Y4G

• Main principle
• Superhet with RF-stage; ZF/IF 462.5 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material

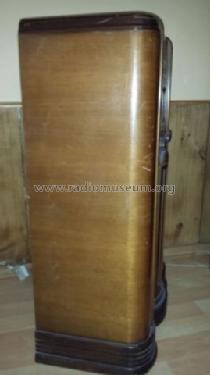

• Wooden case

• from Radiomuseum.org
• Model: 138 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with Push Buttons.

• Notes

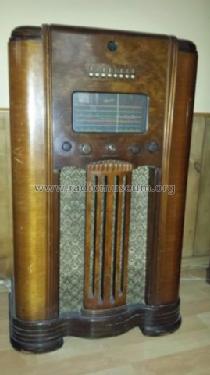

• The Canadian Marconi model 138 is a console radio with BC and Shortwave coverage and pushbuttons for 8 preset stations.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Marconi p.80)

• Author
• Model page created by Steve Valeriote. See "Data change" for further contributors.
