• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246421

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6K7G 6Q7G 6K6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

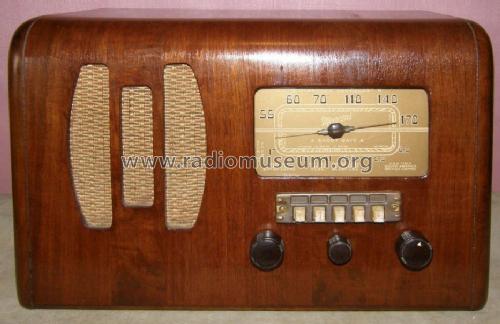

• Model: 166 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 14 x 10 x 8 inch / 356 x 254 x 203 mm

• Notes

• 4 push buttons (automatic tuning).

• Mentioned in
• Radio College of Canada (RCC) (data sheet 92)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
