• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1941 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241793

• • alternative name: CMC Canada || Marconi, Canada

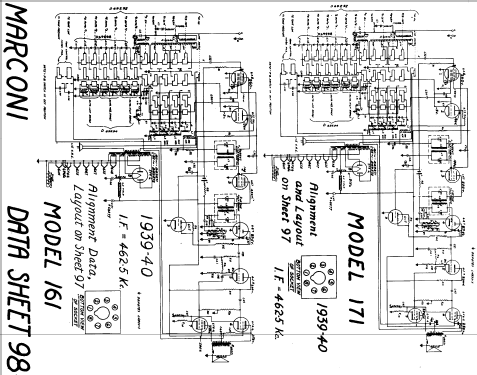

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6A8 6J5 6K7 6Q7 6U5 6J5 6F6G 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 462,5 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 171 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 28 x 37.5 x 12 inch / 711 x 953 x 305 mm

• Notes

• Wave bands: BC and 4 x SW (19, 25, 31 and 49 m bands).

  6 station selector buttons. Tuning eye. Push-pull af output.



• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (sheet 97 & 98)

• Author
• Model page created by Hugues Beaulieu. See "Data change" for further contributors.
