- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1940 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298967
-
- alternative name: CMC Canada || Marconi, Canada

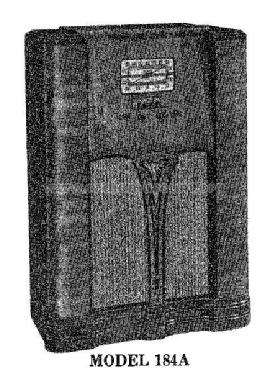

From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 0.8 W (2.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 184A - Canadian Marconi Co. Ltd. CMC,
- Shape
- Console with Push Buttons.
- Notes
-
The Canadian Marconi model 184A is a 6-tube console radio with pushbutton mechanical preset tuner and tuning eye tube. Covers standard broadcast and 5.6-19 MHz shortwave.
- Literature/Schematics (1)
- Marconi Service Manual (Volume 1) (P. 407-410)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
