• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 298969

• • alternative name: CMC Canada || Marconi, Canada

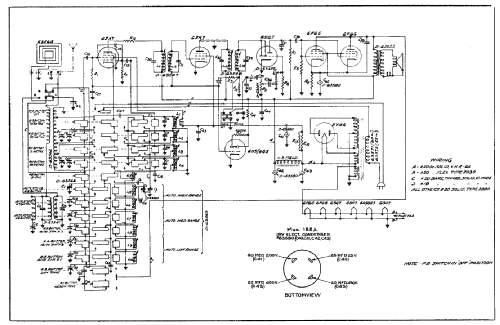

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6F6G 6F6G 6U5 or 6G5 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 3.5 W (5 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 188A - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with Push Buttons.

• Notes

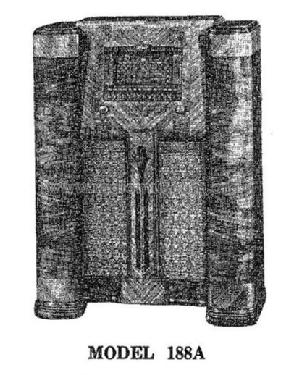

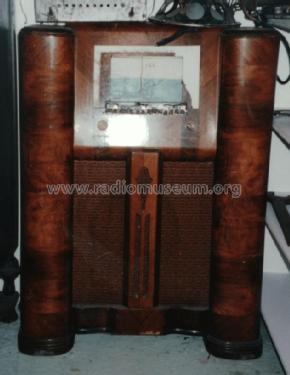

• The Canadian Marconi model 188A is a 7-tube console radio with tuning eye tube and pushbutton station selector. Covers the following ranges:

  Band	Frequency (kHz)
  Standard Broadcast	535 - 1530
  49m	5950 - 6250
  31m	9450 - 9750
  25m	11650 - 11950
  19m	15050 - 15400

• Literature/Schematics (1)
• Marconi Service Manual (Volume 1) (P. 419-422)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
