• Year
  • 1940 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 298980
    • alternative name: CMC Canada || Marconi, Canada

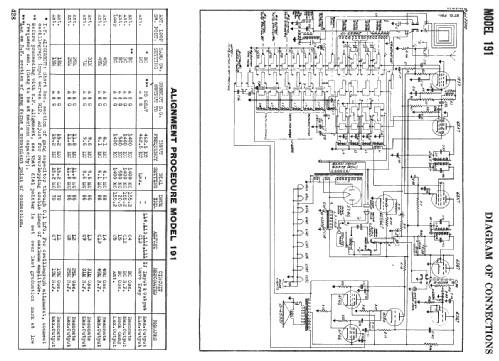

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 462.5 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details

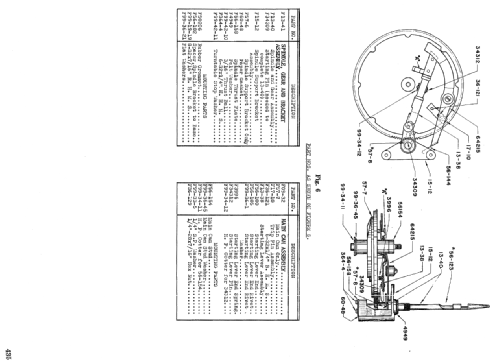

  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 4.5 W (12 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 191 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Console with Push Buttons.
  • Notes
  • The Canadian Marconi model 191 is a 10-tube console radio with tuning eye tube and pushbutton station selector. Has built in automatic record changer.
    Covers the following ranges:

    Band Frequency (kHz)
    Standard Broadcast 535 - 1520
    49m 5950 - 6250
    31m 9450 - 9750
    25m 11650 - 11950
    19m 15050 - 15400

    For 25 or 60 Hz depending on nameplate rating.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
