• Year
  • 1940 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 298998
    • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 1.5 & 2 x 45 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 0.2 W (0.5 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 198 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

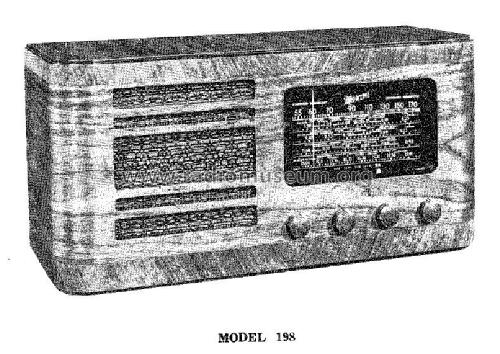

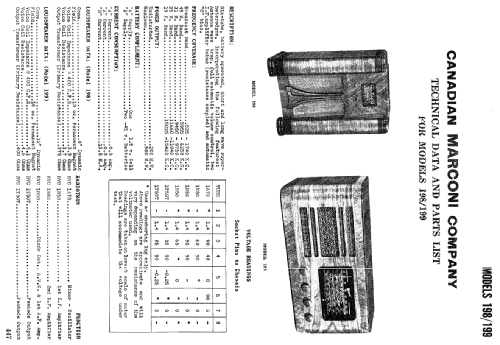

  • The Canadian Marconi model 198 is a 6-tube battery powered table radio. Covers the following ranges:

    Band Frequency (kHz)
    Standard Broadcast 535 - 1740
    49m 5955 - 6250
    31m 9450 - 9750
    25m 11660 - 11940
    19m 15025 - 15420



  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
