• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 299031

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6U5 6SQ7 6J5G 6V6G 6V6G 5Y4G

• Main principle
• Superhet with RF-stage; ZF/IF 462.5 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details

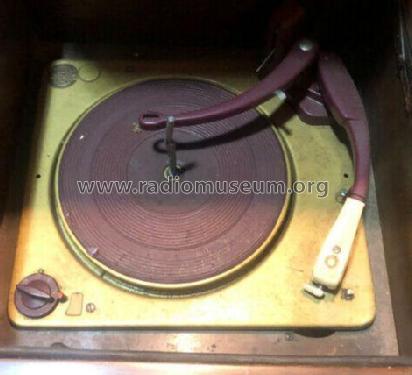

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 inch = 35.6 cm

• Power out
• 5.5 W (10 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 211 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with Push Buttons.

• Notes

• The Canadian Marconi model 211 is a 10-tube console radio with tuning eye tube and pushbutton station selector and built in record changer. Covers the following ranges:

  Band	Frequency (kHz)
  Standard Broadcast	540 - 1710
  Shortwave	5860-16030
  31m	9450 - 9750
  25m	11645 - 11965
  19m	15050 - 15400
  Shortwave	17600 - 22040

  For 25 or 60 Hz depending on nameplate rating.

• Literature/Schematics (1)
• Marconi Service Manual (Volume 1) (P. 481-484)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
