- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1946 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214741
-
- alternative name: CMC Canada || Marconi, Canada
From eBay ad seller nowthenandagain1.
From eBay ad seller nowthenandagain1.

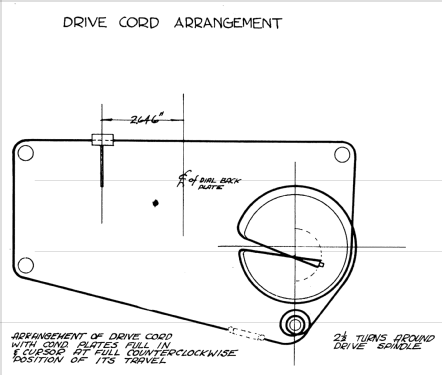

Picture from Marconi Radio Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 217 SW - Canadian Marconi Co. Ltd. CMC,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.5 x 8 x 6.25 inch / 292 x 203 x 159 mm
- Notes
-
The Marconi Model 217 SW is an AC/DC operated 5 Tube BC/SW Receiver. BC Band Tuning Range: 535 to 1610kHz. SW Band Tuning Range: 5.82 to 15.6MHz. Has built-in loop antenna. Operates with either 25 or 60Hz AC power. Cabinet is Walnut.
- Source of data
- Marconi Service Manual Volume No. 2
- Literature/Schematics (1)
- Marconi Service Manual Volume No. 2 (Volume 2, Page 37)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
