- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214966
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.7 W (unknown quality)
- from Radiomuseum.org
- Model: 236A - Canadian Marconi Co. Ltd. CMC,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 8 x 6.25 inch / 305 x 203 x 159 mm
- Notes

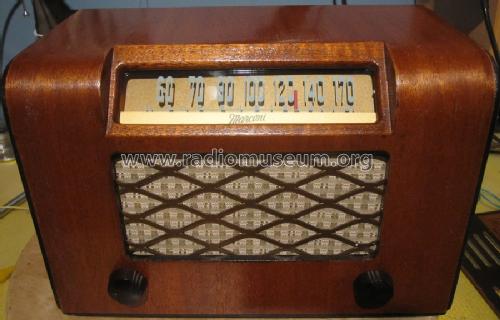

- The Marconi Model 236A is an AC/DC operated 5 Tube BC Receiver. BC Band Tuning Range: 540 to 1720kHz. Has built-in loop antenna with provisions for external antenna. Operates with either 25/60Hz AC or DC power. Cabinet color is Walnut or Mahogany. Marconi Models 236 and 264 use the same chassis and schematic.
- Price in first year of sale
- 54.95 $
- Source of data
- Marconi Service Manual Volume No. 2
- Mentioned in
- Eaton's Fall and Winter 1948-49 Catalog.
- Literature/Schematics (1)
- Marconi Service Manual Volume No. 2 (Volume 2, Page 103)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
