• Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 173889
    • alternative name: CMC Canada || Marconi, Canada

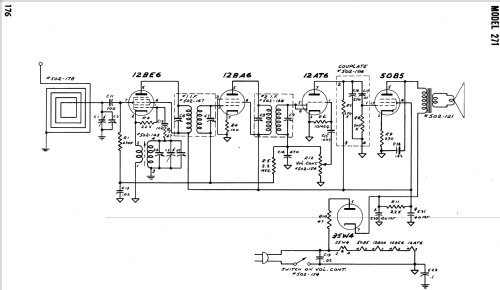

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 271 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • The Marconi Model 271 is an AC/DC operated 5 Tube BC Receiver. BC Band Tuning Range: 540 to 1720kHz. Has built-in loop antenna. Operates with either 117V, 25/60Hz AC or 117V DC power. Cabinet color is Ivory or Mahogany, Maroon or Green.
  • Mentioned in
  • -- Original-techn. papers. (Canadian Marconi Co.; Techn. Data & Parts List,)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
