- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 173892
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 10 inch = 25.4 cm
- Power out
- 8 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

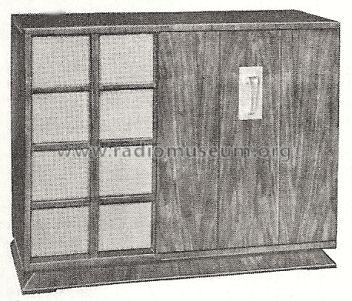

- Model: 333 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Console with any shape - in general
- Notes
- Canadian Marconi 333;
MW: 540 - 1620 kHz,
FM: 88 - 108 MHz,
SW NB: 5.9 - 10 MHz,
SW DB: 11 - 19 MHz,
- Mentioned in
- -- Original-techn. papers. (Canadian Marconi Co.; Techn. Data & Parts List,)
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 26 pages 29 and 30.)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
