- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301726
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

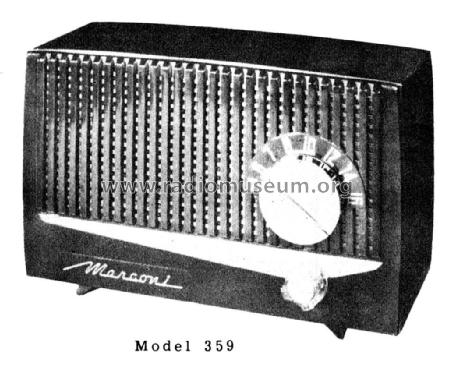

- Model: 359 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-

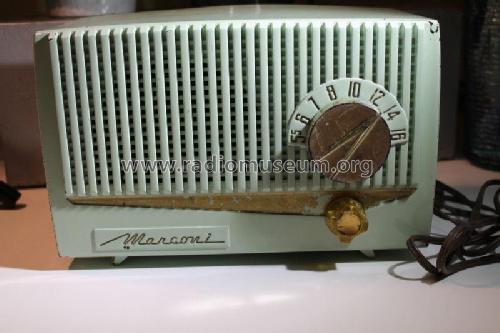

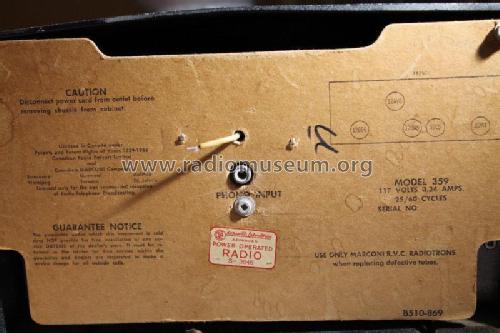

The Marconi model 359 is a 5-tube AC/DC table radio for standard broadcast reception. Has loop antenna on back panel. Same schematic as Marconi model 415.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1956 supplement 37)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
