429

Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

Data
Forum
Pictures
Collections

  • Year
  • 1954 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 241672
    • alternative name: CMC Canada || Marconi, Canada

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (0.7 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 429 - Canadian Marconi Co. Ltd. CMC,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 15.5 x 8 x 8 inch / 394 x 203 x 203 mm
  • Notes

  • Elliptical speaker 4" x 6".

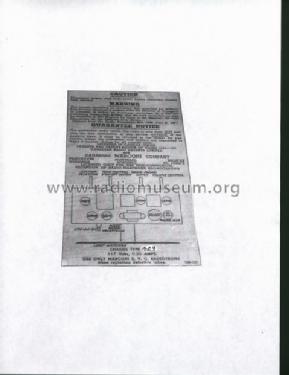

    The type number was modified manually, originally it showed a model 409.

  • Net weight (2.2 lb = 1 kg)
  • 5 lb (5 lb 0 oz) / 2.270 kg
  • Author
  • Model page created by Gilles Girard. See "Data change" for further contributors.
