• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 264906

• • alternative name: CMC Canada || Marconi, Canada

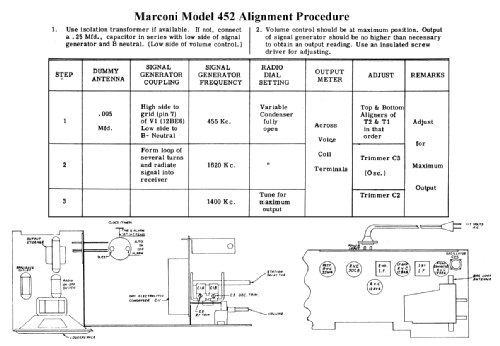

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 452 - Canadian Marconi Co. Ltd. CMC,

• Shape

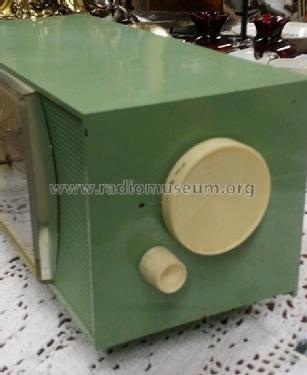

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

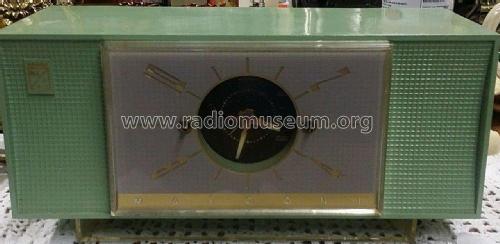

• Marconi Table Top Alarmclock AM Receiver Model 452.

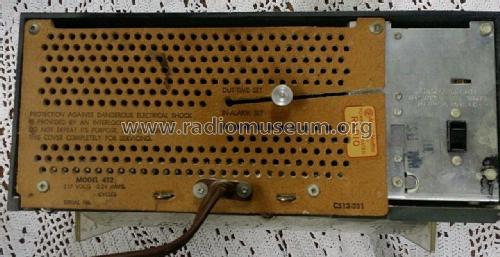

  117 Volts 0.24 Amps



• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
