- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244794
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Details

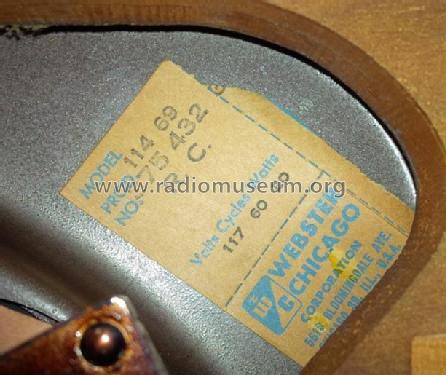

- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt

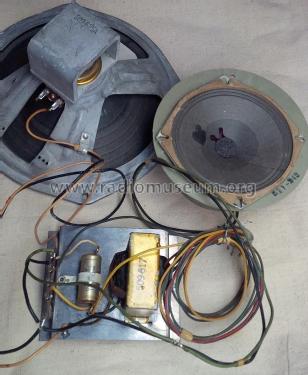

- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 495 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Console with any shape - in general
- Notes
-
The Canadian Marconi model 495 is a 9-tube console radio with built in record changer and magnetic phono pickup. Available in Walnut, Mahogany and Limed Oak. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1957 Supplement 39)
- Literature/Schematics (3)
- Marconi Folder Radios..Phono-Combinations..HI-FI for 1955
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
