• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197647

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 34 1A6 34 34 33

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 2 or 2.3 & 90 & 90 or 135 & -1.5 & -6 & -13.5 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

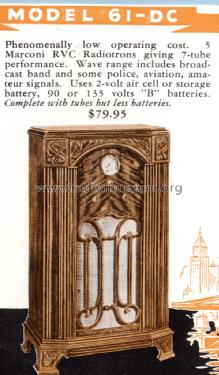

• Model: 61-DC - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console, Lowboy (legs < 50 %).

• Price in first year of sale
• 79.95 $

• Source of data
• Pre-War Consoles

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Marconi data sheet 29)

• Literature/Schematics (3)
• Marconi Folder for 1936.

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
