- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241833
-
- alternative name: CMC Canada || Marconi, Canada

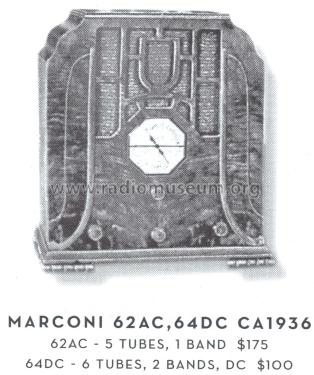

Scanned from the Marconi Folder for 1936.
Scanned from the Marconi Folder for 1936.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 450 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 2 or 2.5 & 135 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Power out
- 0.485 W (0.685 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 64-DC - Canadian Marconi Co. Ltd. CMC,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
The second production series used a 1B5 instead of a 1A6. Please see schematic.
- Price in first year of sale
- 87.00 $
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Marconi data sheet 31 & 32)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 175.)
- Literature/Schematics (3)
- Marconi Folder for 1936.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
