• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130756

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

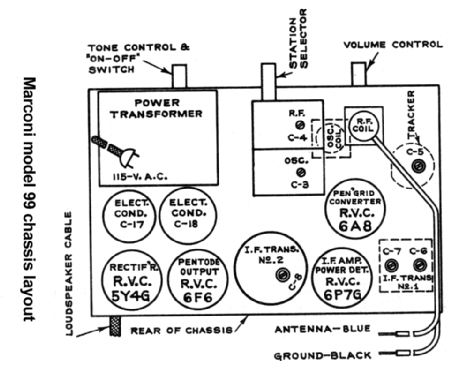

• 6A8 6P7G 6F6 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 462.5 kHz; 1 AF stage(s); something special ? Please give information (notes)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 2.45 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 99 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Extended reception to 1950kc; triode detector; volume control shunts antenna to ground.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Canadian Marconi Service Manual #1

• Author
• Model page created by John Bartley. See "Data change" for further contributors.
