HF-401 Ch= 400-1B and 400-2
Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 341183
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HF-401 Ch= 400-1B and 400-2 - Canadian Marconi Co. Ltd. CMC,
- Notes
-

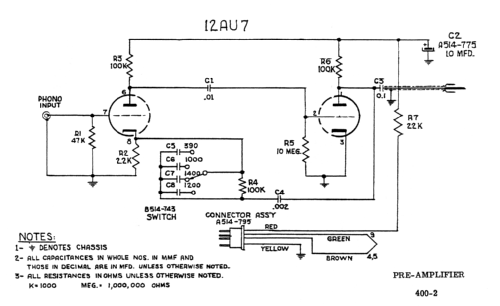

The Marconi model HF-401 uses amplifier chassis 400-1B and preamplifier chassis 400-2 and is a 6-tube phonograph with magnetic pickup. Has a woofer and two tweeters. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1958 supplement 44)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
