• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341184

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BE6 6BA6 12AU7 6AV6 12AU7 6AQ5 6AQ5 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: HF-402 Ch= 400-1C with 400-2 and 400-3 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

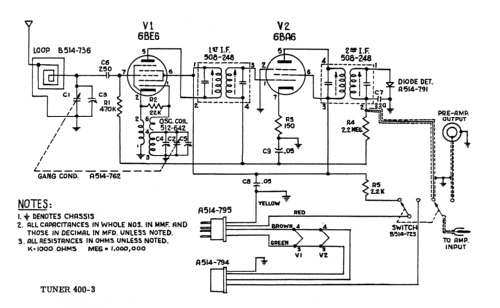

• The Marconi model HF-402 uses amplifier chassis 400-1C, preamplifier chassis 400-2, tuner chassis 400-3 and is an 8-tube phonograph with magnetic pickup and AM tuner. Has a woofer and two tweeters. For 25 or 60 Hz depending on nameplate rating.

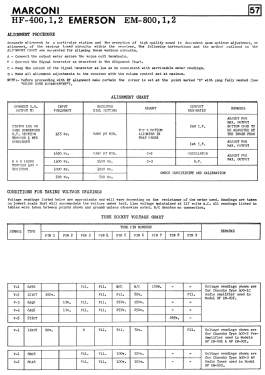

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1958 supplement 44)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
