6AC-1927/28 Radiola 17
Canadian Westinghouse, Hamilton
- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93855
-
- alternative name: Westinghouse Canada

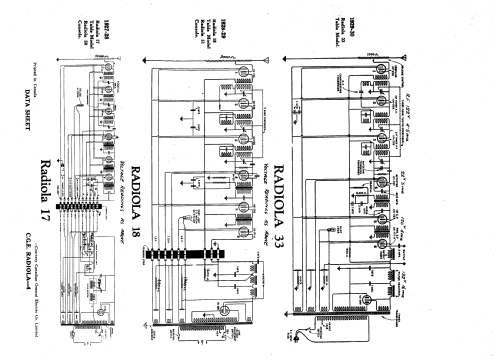

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6AC-1927/28 Radiola 17 - Canadian Westinghouse,
- Shape
- Tablemodel, with any shape - general.
- Notes
- Schematic is similar to US model RCA Radiola 17 and Canadian General Electric (CGE) Radiola 17.
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Literature/Schematics (1)
- Radio College of Canada, Individual Circuit Service, 1927-1953
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
