• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296171

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 6K7 6K7 6B7 6F6 80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

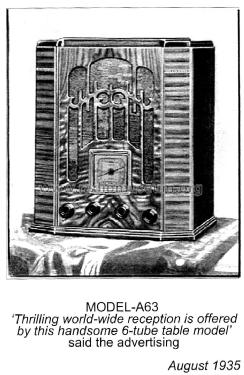

• Model: A63 - Canadian General Electric

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 15 x 18.5 x 10.5 inch / 381 x 470 x 267 mm

• Notes

• The Canadian General Electric model A63 is a 6-tube radio covering standard broadcast and shortwave. Not the same as the USA model A-63.

  The schematic may have some similarity to CGE model A-54.



• Mentioned in
• Radios of Canada; Swackhammer (Page 26)

• Author
• Model page created by Jon Cockcroft. See "Data change" for further contributors.
