- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293782

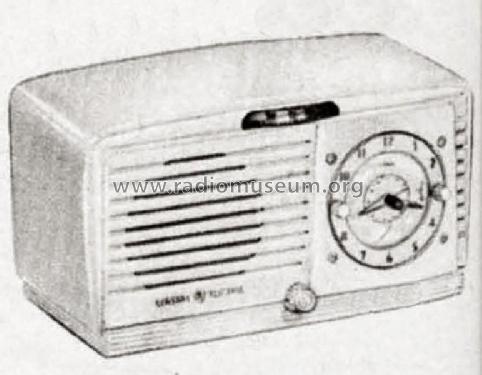

Simpson's Spring and Summer 1952 catalog.
Simpson's Spring and Summer 1952 catalog.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Radio with other functions
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.1 W (2 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: C504 - Canadian General Electric
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 11.5 x 6.25 x 6.25 inch / 292 x 159 x 159 mm
- Notes
-
The Canadian General Electric model C504 is a 4-tube clock radio available in walnut, or ivory plastic cabinet. This model requires an external wire antenna. For 25 or 60 Hz depending on nameplate rating.
- Price in first year of sale
- 44.95 $
- Source of data
- -- Original prospect or advert
- Mentioned in
- Simpson's Spring and Summer 1952 catalog.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 27 pages 13 and 14.)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
