- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293180
eBay item 282876474349
eBay item 282876474349
From RCC supplement 33.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Radio with other functions
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (1.7 W max.)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

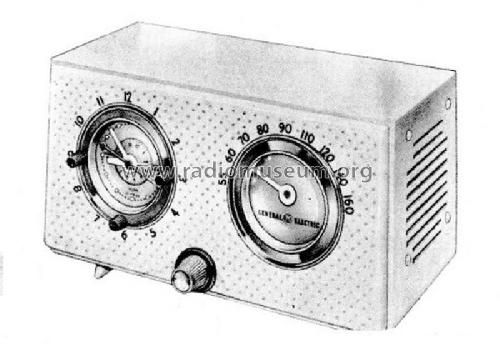

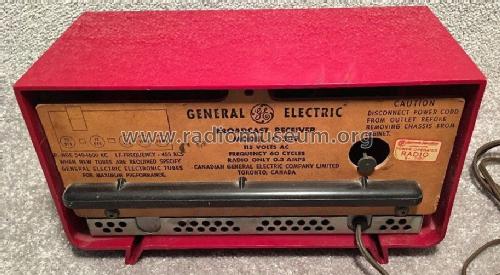

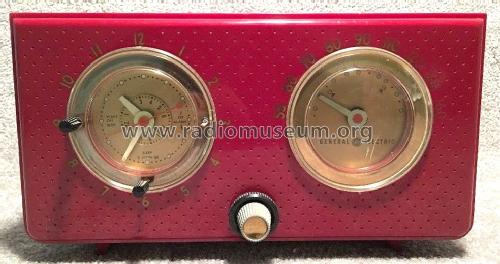

- Model: C509 - Canadian General Electric
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
The Canadian General Electric model C509 is a table clock radio covering the standard broadcast band. It has an internal loop antenna. The circuit is built on a PCB and has a couplate. It was available with 25 or 60 Hz clock motors depending on nameplate.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Suppliment 33 pages 15 and 16)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
- Other Models
-
Here you find 505 models, 373 with images and 428 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
