• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 281546

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12SK7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.8 W (1.4 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C601 - Canadian General Electric

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14 x 9 x 9 inch / 356 x 229 x 229 mm

• Notes

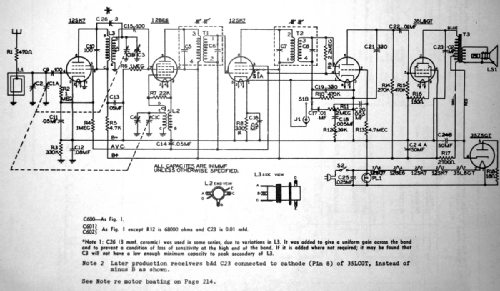

• Schematic same as CGE C600 EXCEPT

  • R12 is 68000 ohms
  • C23 is 0.01 mfd

  Wood Cabinet is walnut.

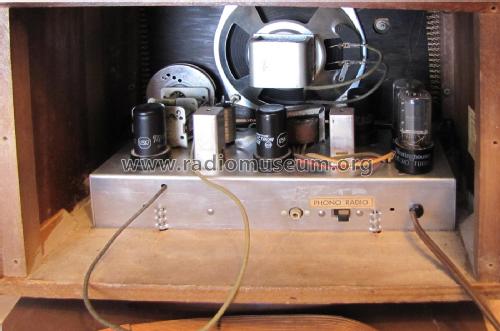

  Has phono input with switch on rear of radio chassis.

• Author
• Model page created by Les Dickson. See "Data change" for further contributors.
