- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301233

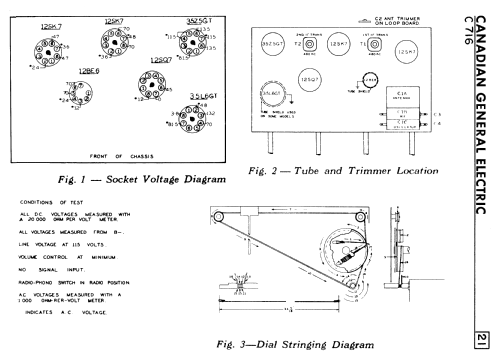

From RCC manual.

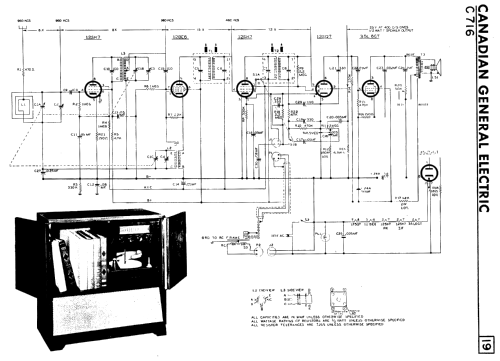

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 0.6 W (1.2 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C716 - Canadian General Electric
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 31 x 31 x 16.25 inch / 787 x 787 x 413 mm
- Notes
-

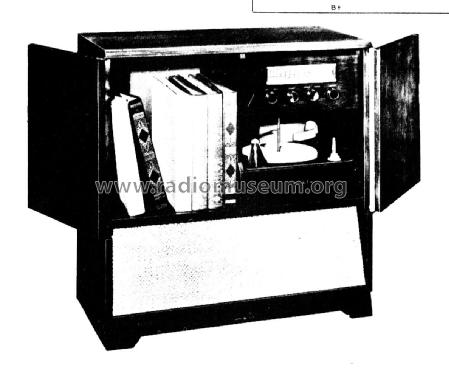

The Canadian General Electric model C716 ia a 6-tube console radio with built in automatic record changer. Available in walnut mahogany and light oak.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1955 Supplement 34)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
