• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307175

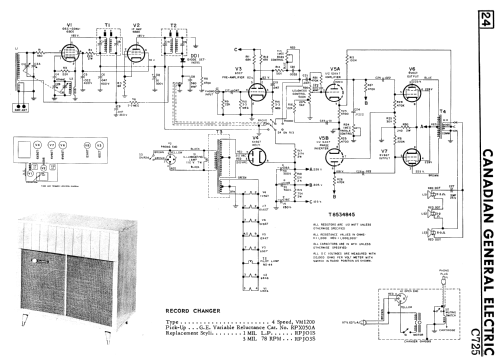

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BE6 6BA6 6SC7 12AX7 6V6GT 6V6GT 6X5

• Number of Transistors

• Semiconductors
• 1N295

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: C725 - Canadian General Electric

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Canadian General Electric model C725 is a 7-tube console radio with built-in record changer. Has a woofer and two tweeters. Uses an magnetic pickup.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 45)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
